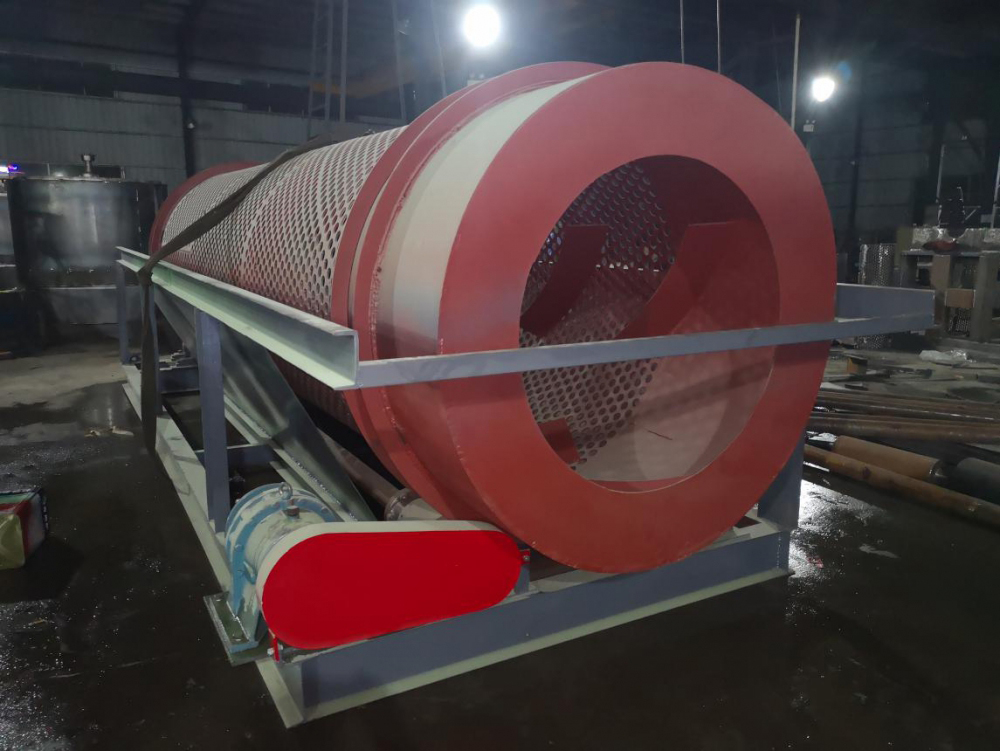

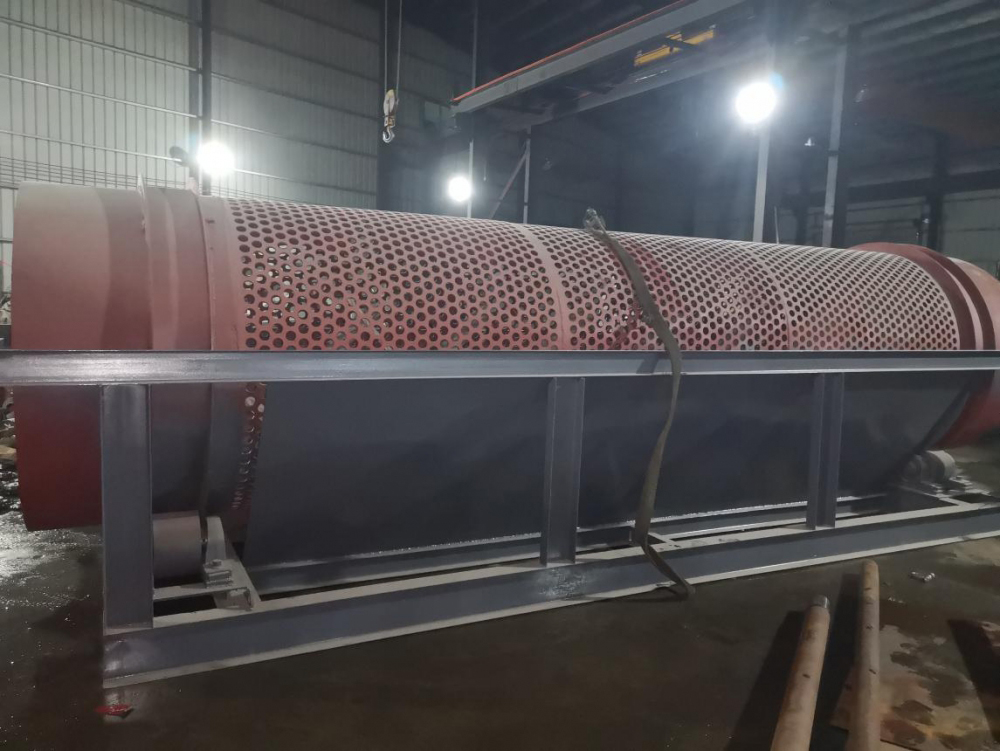

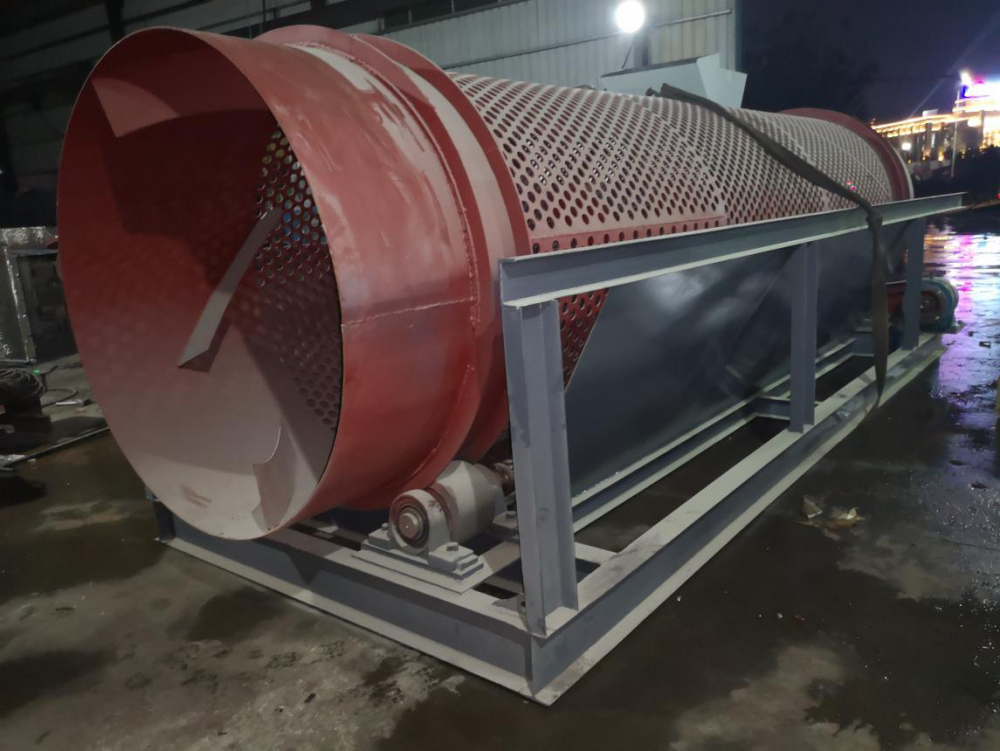

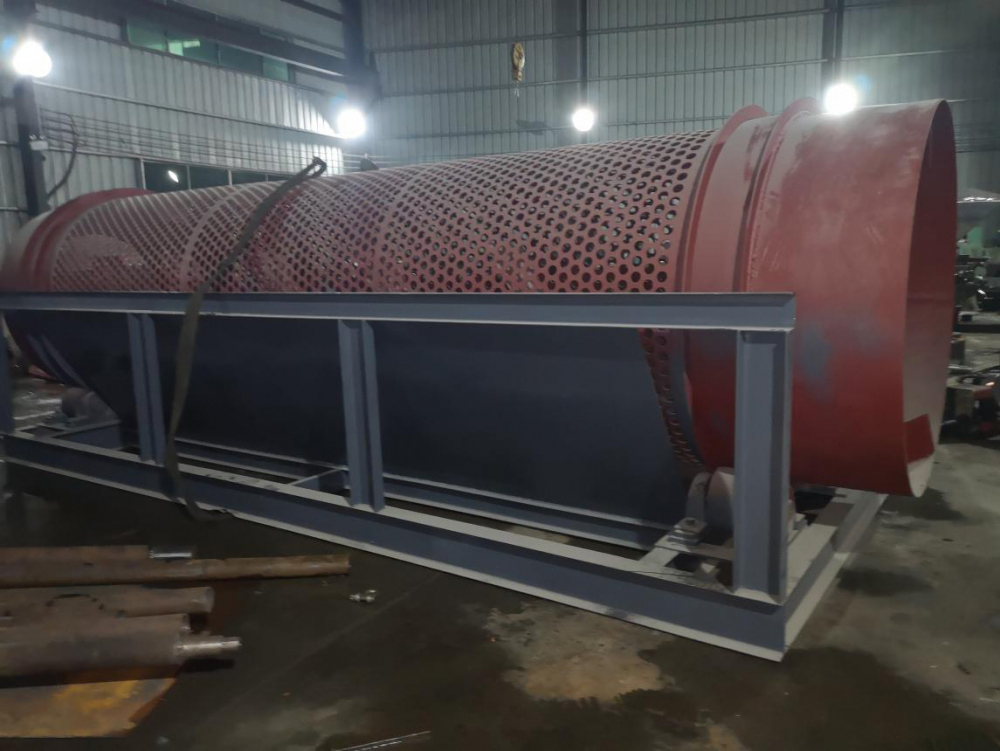

Trommel Screen, Plastic Recycling Machine

  • Trommel Screen
  • Trommel Screen

The trommel screen can achieve particle separation by spiraling the feeding material down the rotating drum, so that the qualified (undersized) particles smaller than the screen apertures passes through the screen, and the unqualified (oversized) particles exits through the perforated cylindrical drum at the feed end.

The trommel screen can realize separation of materials that are viscous, humid, dirty and miscellaneous, and can be used for mass production.

The undersized particle is less than 100mm, and the medium-sized particle is of 10 to 50mm.

Detail
Trommel Screen

Automatic cleaning brush in the trammel screen can prevent the screen apertures from blockage, and is convenient for maintenance.

Trommel Screen

The screen is a flat steel ring with good wear resistance and long service life.

Parameters
Model CR-GT1000# CR-GT1200# CR-GT1500# CR-GT2000#
Drum Diameter 1000 mm 1200 mm 1500 mm 2000 mm
Drum Length 4500 mm 5000 mm 5500 mm 10000 mm
Screen 40 mm
Motor 4kw (with frequency control) 5.5kw (with frequency control) 11kw (with frequency control)
Rpm 0-25RPM
Dimensions L5200*L1600
*H2000 mm
L5200*W1900
*H2200 mm
L5900*W2100
*H2200 mm
L10800*W2200
*H2500 mm
Weight 2000 kg 2500 kg 3000 kg 6000 kg
Recommended matching production line
    1. Film & Fiber
    2. Plastic Film & Fiber Recycling
    1. Pipe
    2. Plastic Pipe Recycling
Related Product
    1. Friction Washer
    2. Friction Washer
    1. Horizontal Baler
    2. Horizontal Baler
    1. Vertical Baler
    2. Vertical Baler
    1. Delabeler
    2. Delabeler
