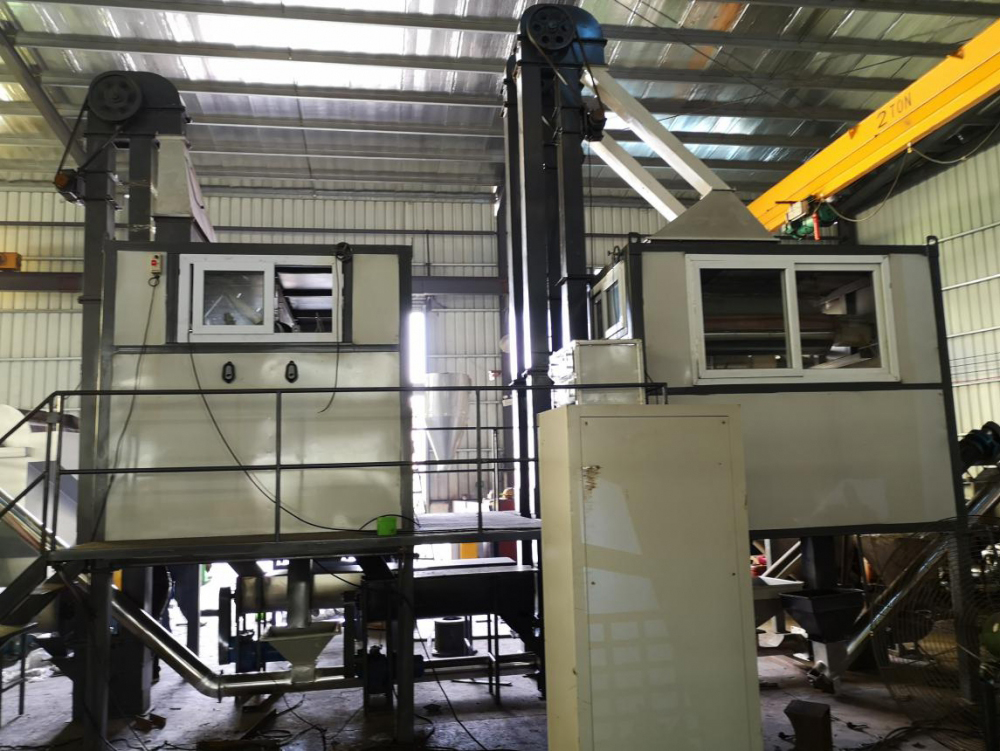

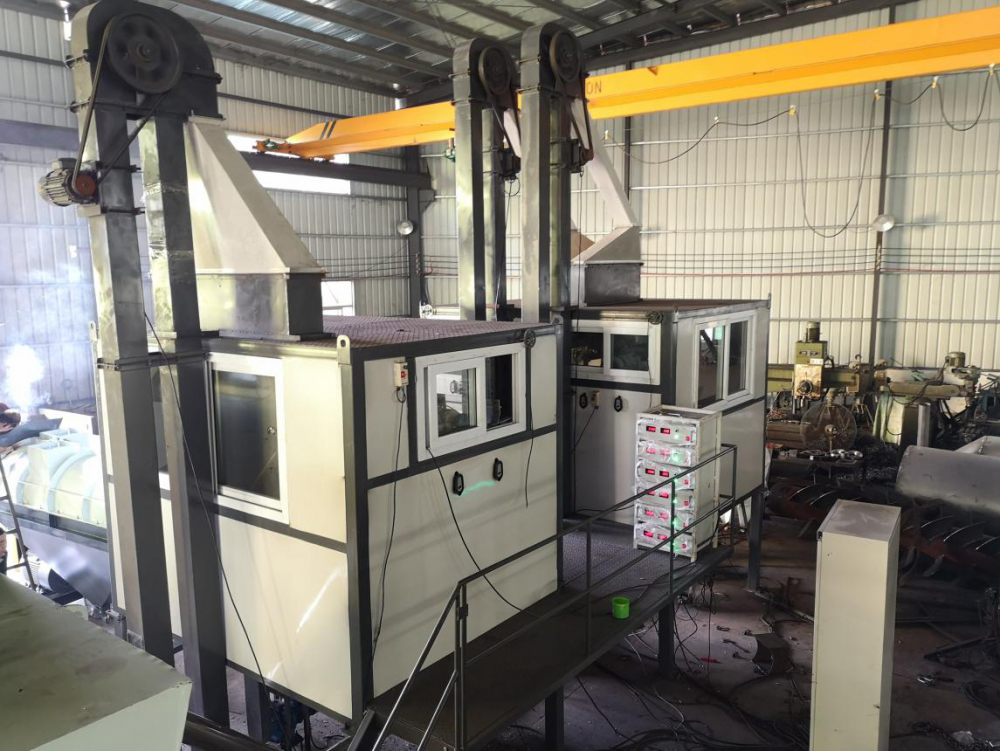

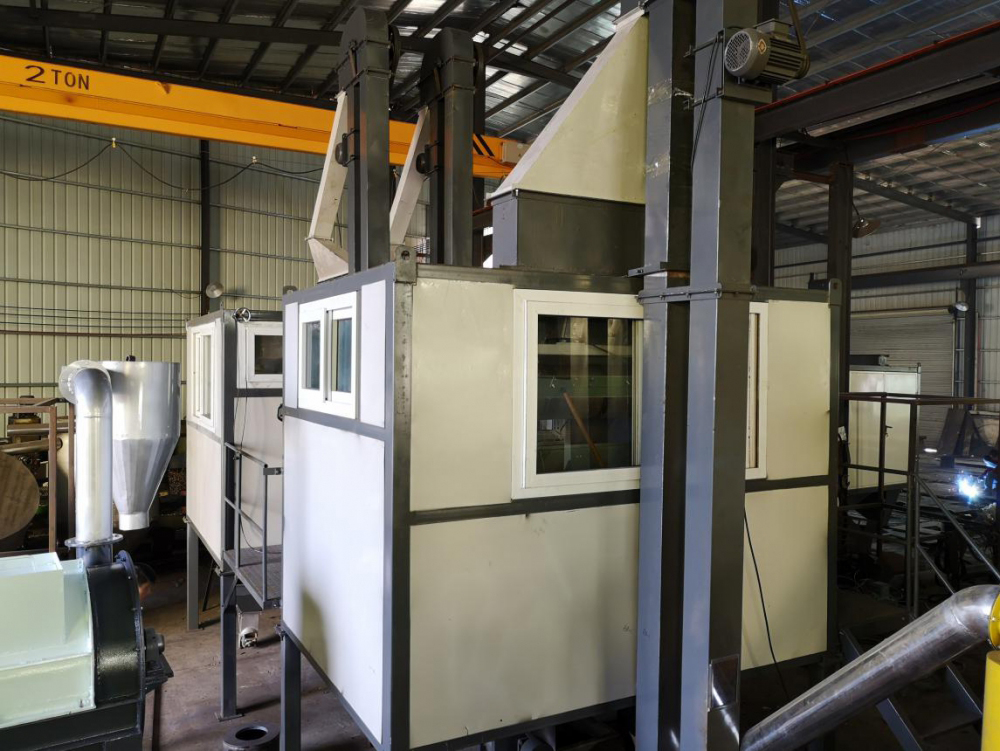

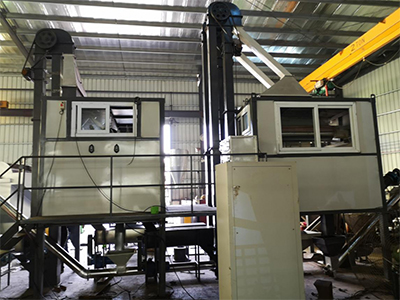

Electrostatic Separator, Plastic Recycling Separator Machine

Electrostatic separation adopts the electrical conductivity difference of particles in the high-voltage electric field to achieve the purpose of sorting. The plastic mixtures are separated due to different trajectories of various materials caused by their different electrical properties and stress states.

Electrostatic separator is suitable for sorting miscellaneous plastics that are difficult to separate by various density flotation methods, such as ABS/ABS alloy/PC, PS/PET/PVC, PA/PE/PO, etc.

The material needs to be pulverized before it enters the separator, so as to achieve an ideal separation effect.

CRSTA electrostatic separator has much less strict requirements for the size of crushed particles that the crushed materials below 20mm can be easily passed through. The accuracy (purity) of a single sort can reach over 98%, and the second sort can be approximate to 100%.

Cleaning the crushed particles after drying (particle size: 20mm or less) -feeding to the hopper -hot pre-drying -quantitative screw conveying -stirring crushed particles- quantitative vibration feeding –primary electrostatic sorting - stirring crushed particles - quantitative vibration feeding – secondary electrostatic sorting - finished product after sorting - bagging.
