Horizontal Baler, Plastic Recycling Baler Machinery

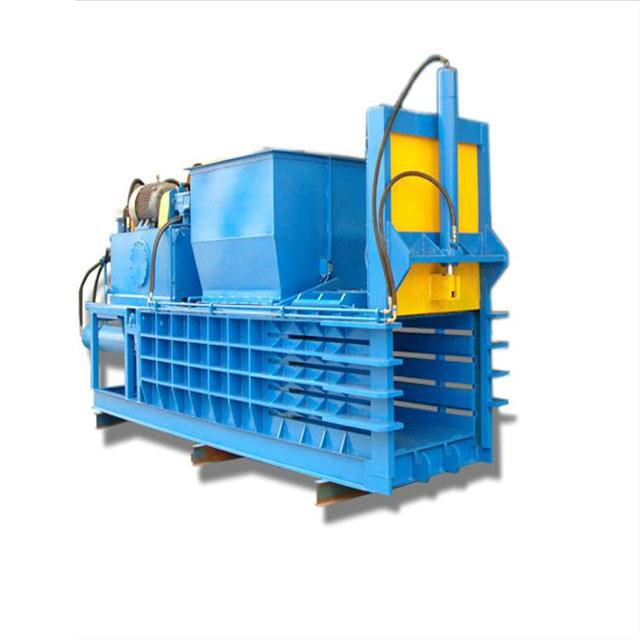

Horizontal Baler

Featuring good load capacity, large conveying capacity and slip resistance, CRSTA horizontal baler is suitable for compression and packaging of loose materials, such as waste paper, waste plastic, waste fiber, straw, wheat straw and so on.

The chamber size and bale size can be customized according to customer requirements.

Detail
Horizontal Baler

All CRSTA horizontal balers are hydraulically driven, and the operation can be manually or PLC automatically controlled. There is no need for foot screws for installation, and diesel engine can be used as power source where there is no power.

Parameters
Model CR-BZDBJ150T CR-BZDBJ120T
Dimensions L12000mm×W8510mm×H5000mm L6000mm×W1000mm×H2000mm
Bale Size W1200mm×H1100mm×L (freely adjustable length) L800-1200mm×W850mm×H900mm
Feed Opening L1200mm×W1150mm L1300mm×W900mm
Bale Weight 450-800kg 350-500kg
Main Cylinder ¢D280mm×¢d200mm ¢D250mm×¢d220mm×L1785mm
Pump 38V60A 35V50A
Motor 37KW (4 levels) 30kw (4 levels)
Weight About 15T About 11T
Conveyor L11000mm×W1500mm×H5000mm L8500mm×W1200mm×H3500mm
