Vertical Baler, Plastic Recycling Baler Machinery

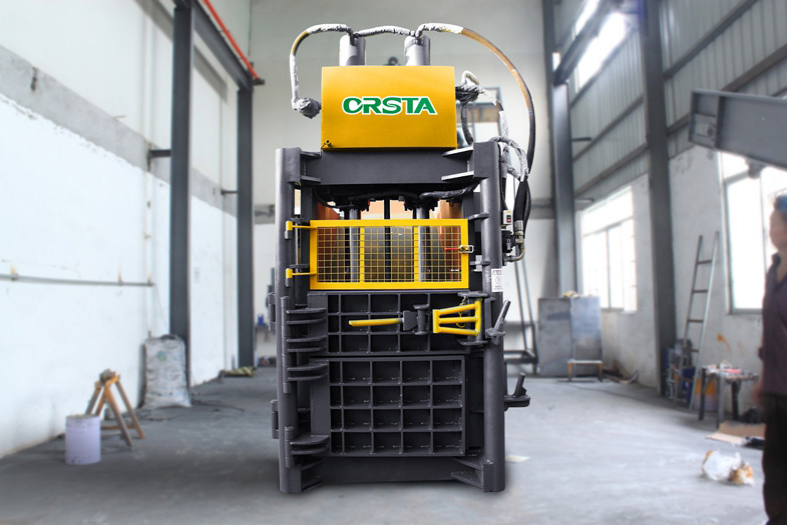

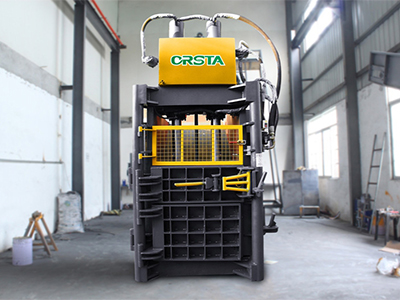

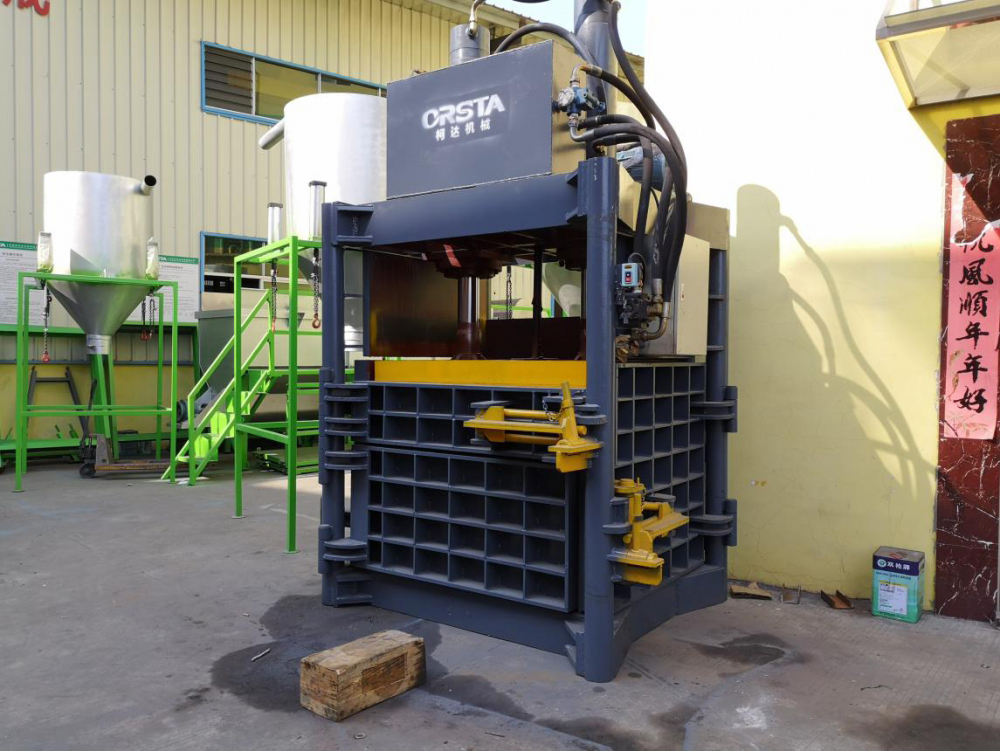

Vertical Baler

All CRSTA vertical balers are hydraulically driven, with the hydraulic force available in five grades from 30T to 120T.

The chamber size and bale size of vertical baler can be customized according to customer requirements.

There is no need for foot screw for installation of vertical baler, and diesel engine can be used as power source where there is no power.

Detail
Vertical Baler

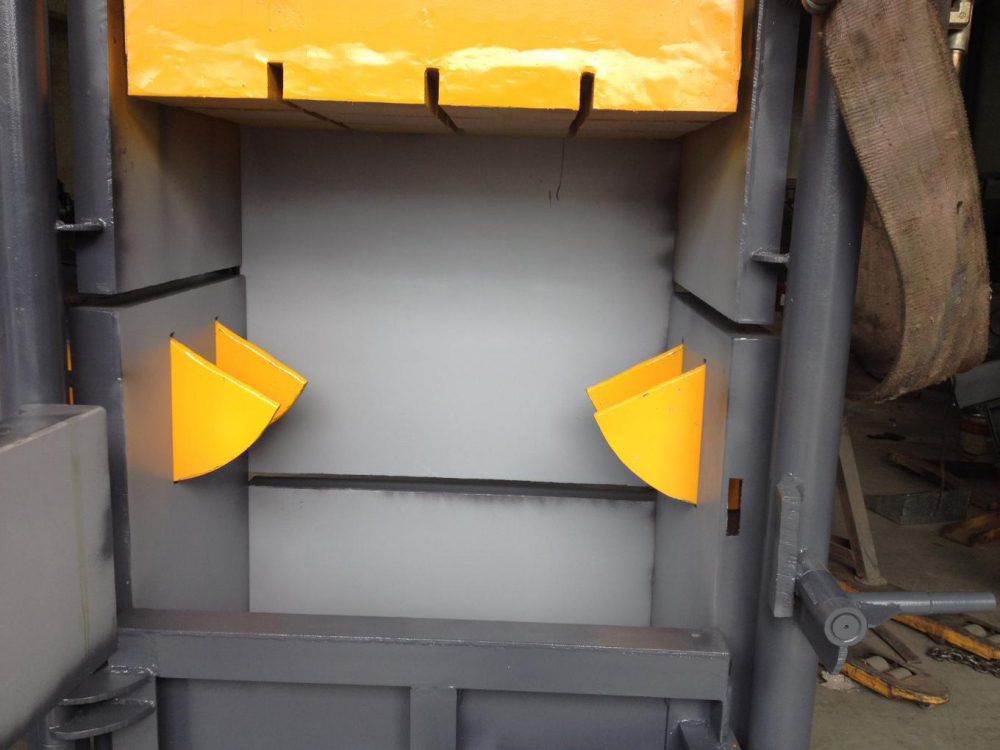

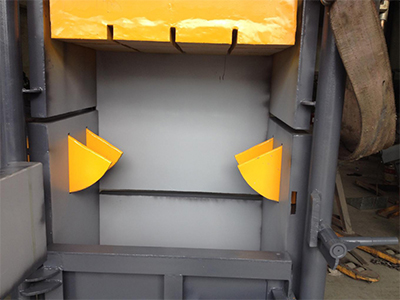

A bouncer is added to facilitate baling of looser materials such as tires, plastic bottles, and sponges.

Vertical Baler

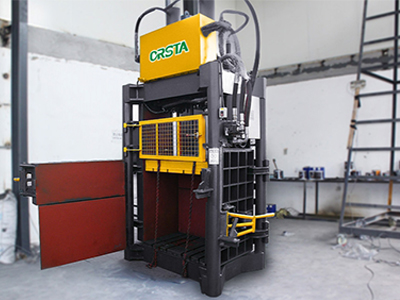

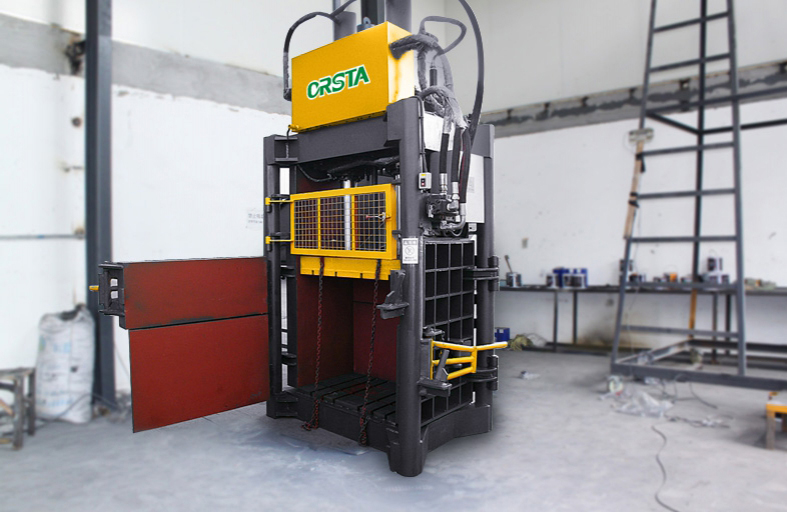

The vertical baler is equipped with a security door to avoid hurting someone during baling.

Vertical Baler

The vertical baler is equipped with a chain free bale ejection system that the finished bale can be automatically ejected out of the bale chamber, thus reducing the labor costs.

Parameters
Model Bale Size Pressure Motor Dimensions Weight
30T L900*W600*H (Random) mm 50MPA 7.5kw L1100*W850*H3200 mm 1.8T
60T L900*W600*H (Random) mm 80MPA 11kw L1100*W900*H3200 mm 3.2T
80T L1100*W710*H (Random) mm 120MPA 15kw L1400*W1000*H3400 mm 4.5T
100T L1200*W740*H (Random) mm 175MAP 18.5kw L1400*W1050*H3400 mm 5.5T
120T L1200*W1100*H (Random) mm 200MAP 22kw L1500*W1400*H3800 mm 6.5T
Note: Non-standard large size hydraulic baler can be customized according to customer requirements.
