Washer, PET Bottle Recycling Washing Line

Washer

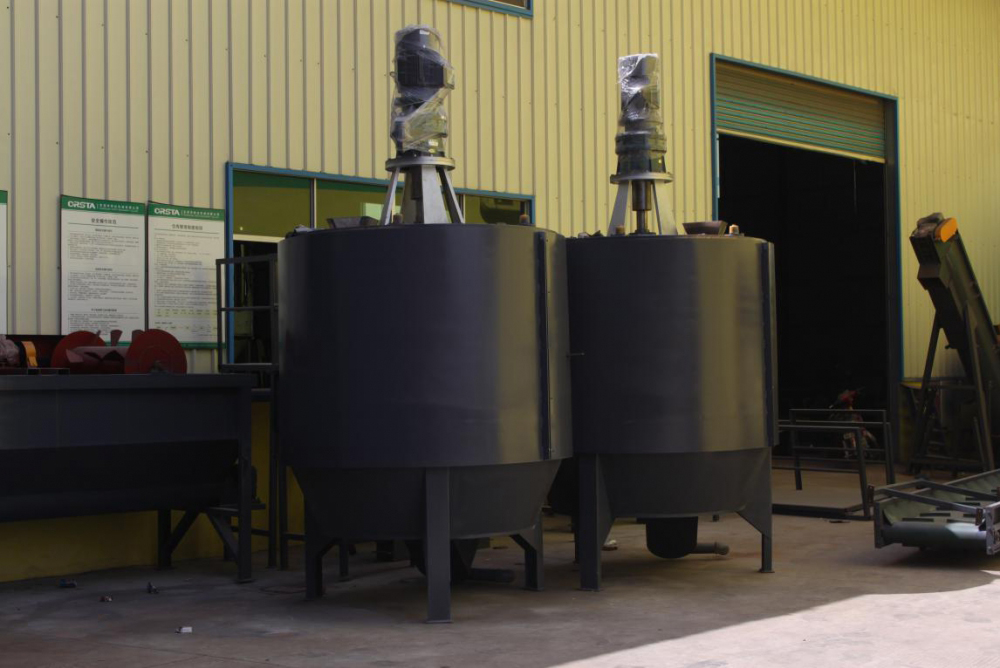

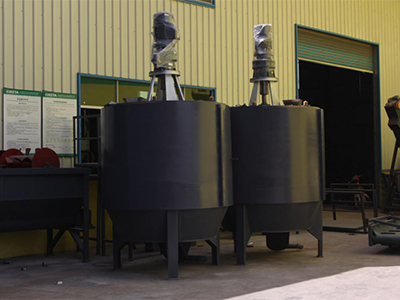

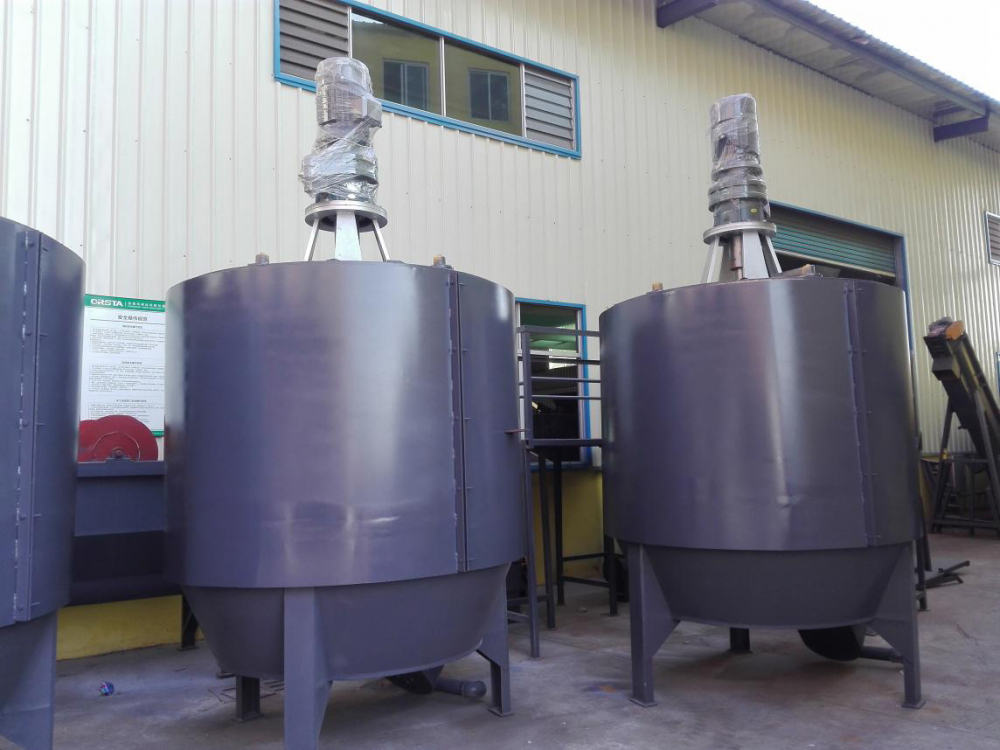

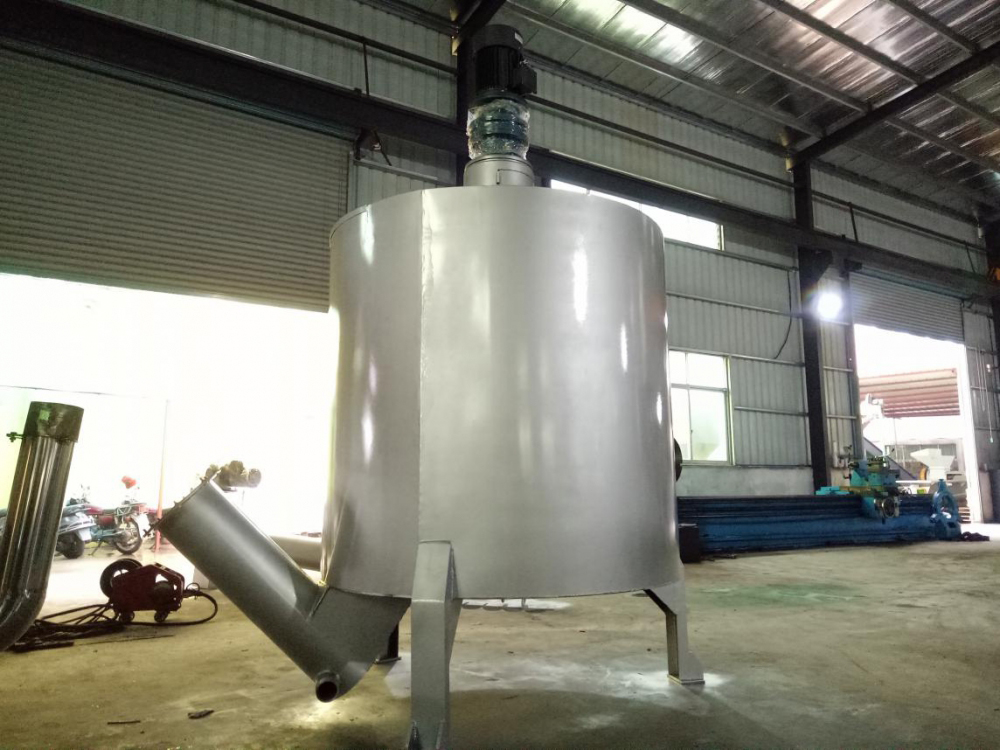

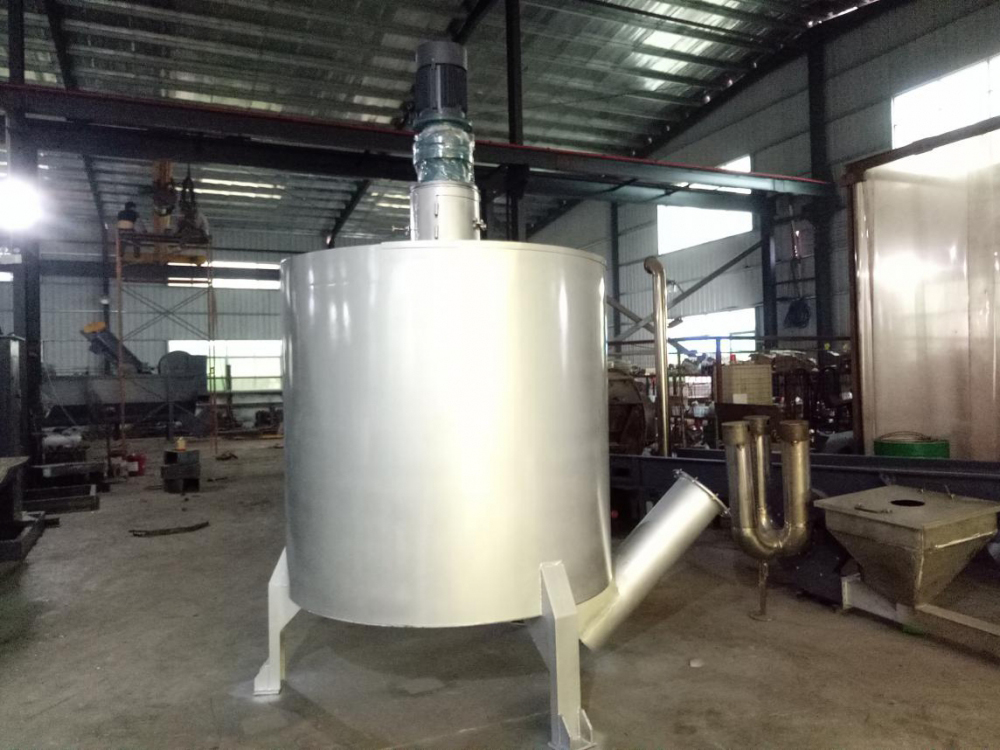

Hot washer is used in the fourth step after de-labeling, shredding and rinsing for washing plastic bottles such as PET, ABS, PC, etc. Under the combined action of high temperature and cleaning agent, it can effectively remove the stubborn stains such as oil stains and ink on the surface of the material.

The hot washer is equipped with a blade type shaft that can ensure the material and the cleaning agent are uniformly mixed and evenly heated during the hot washing, and the sewage is not easy to seep out, thus to reduce environmental pollution.

The heating methods can be customized according to the actual situation of the customer's production site, including electric heating / coal / boiler steam and so on.

Detail
Washer

The closed structure makes it difficult for heat dissipation, so that the temperature can be stably maintained.

Washer

The built-in stirring device can realize a full contact of cleaning agent and bottle pieces, so that the stubborn stain can be more easily cleaned.

Washer

Made of thick steel plate, the hot washer is of wear resistance, corrosion resistance and long service life.

Parameters
Model Diameter of working chamber Volume Motor Dimensions Weight
CR-GW1400# Φ1400*H1500 500KG 5.5kw L3000*W1500*H3100 mm 900KG
CR-GW1700# Φ1700*H1800 8000KG 7.5kw L3500*W1800*H3500 mm 1500KG
CR-GW2000# Φ2000*H2200 1500KG 11kw L3800*W2000*H3800 mm 2000KG
CR-GW2300# Φ2300*H2500 2000KG 15kw L4500*W2300*H4200 mm 2500KG
Recommended matching production line
    1. Bottle
    2. Plastic Bottle Recycling
    1. Plastic Housing
    2. Plastic Housing Recycling
Related Product

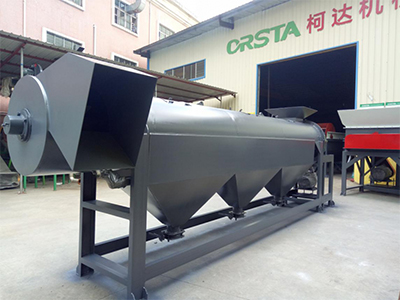

    1. Washing Machine
