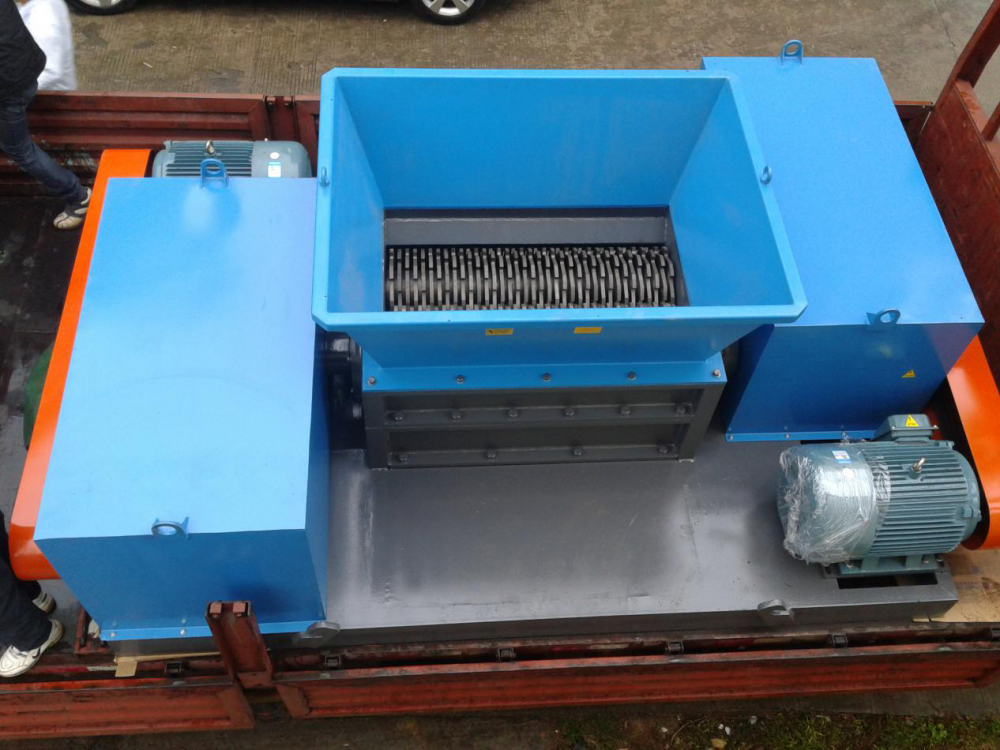

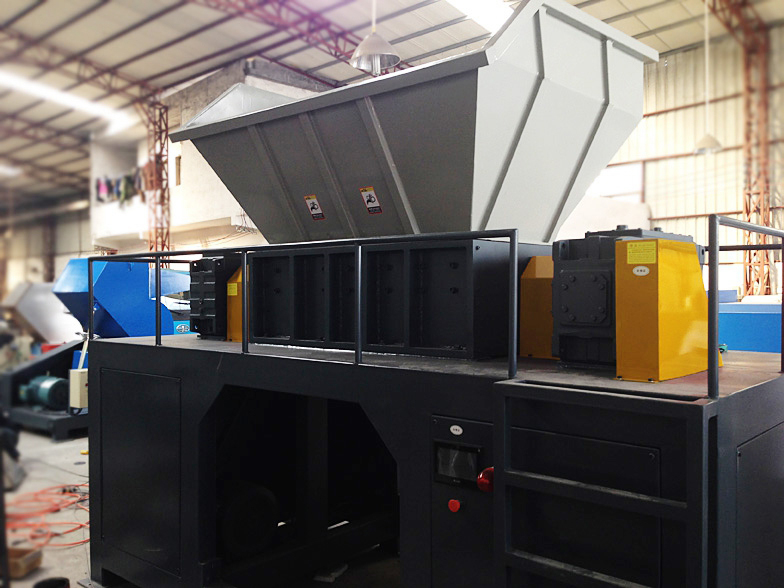

Dual Shaft Shredder, Two Shaft Shredder, Plastic Shredding Machine

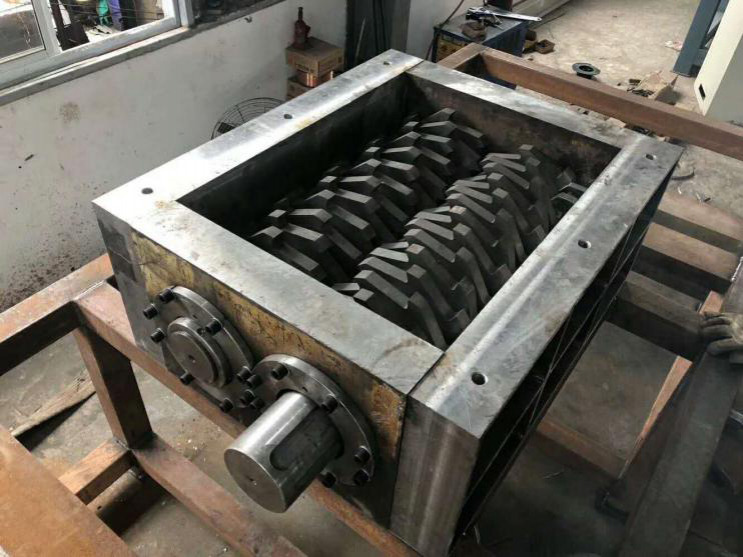

The two cutters of dual shaft shredder are designed to relatively rotate clockwise and counter clockwise to achieve the purpose of completely shredding the material.
It is suitable for shredding materials like metal, rubber, wood, plastic, paper, fiber cloth, etc.
The blade is made of 55 silicon chromium 9crsi, Cr12MoV, SKD-11 and other materials, so that it can work at continuous high temperature without deformation, ensuring effective work during production.
Our industrial two-shaft shredder is automatically controlled by computer (PC), so it is easy to operate.
The split bearing housing is convenient for cutter replacing, and is suitable for shredding large sized and extra-hard materials.

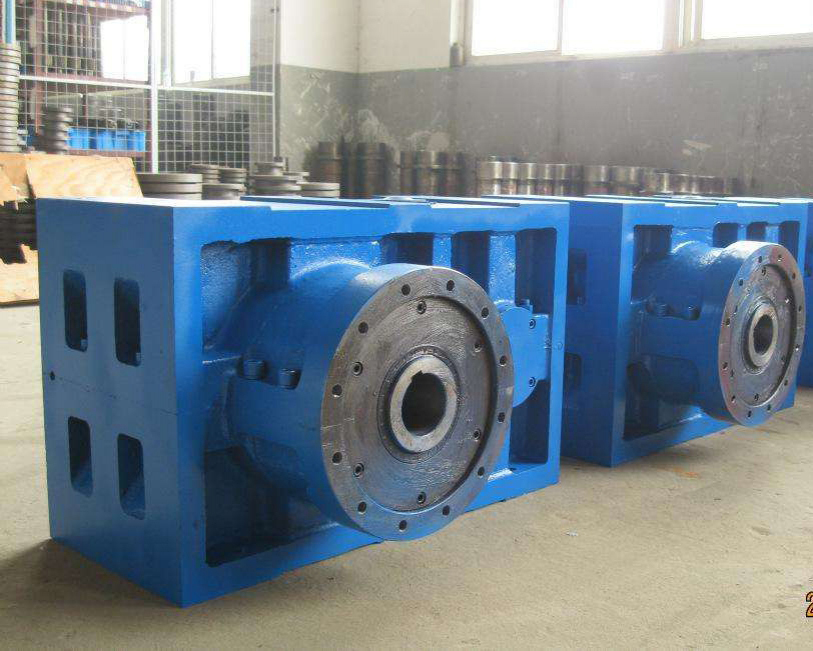

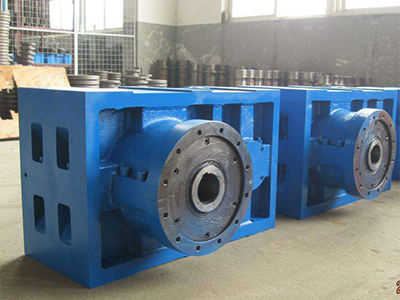

The gears are subject to carburizing and quenching treatment, obtaining rigid and wearable surface, which improves the efficiency and service life of the whole machine.
| Model | Power (KW) | Cutters Diameter (MM) | Dimensions (M) | Throughput (KG/H) | Weight (T) | Application |
| CR-CG600# | 30 | 200 | L1.8*W0.8*H1.9 | 1000 | 2.5 | Suitable for chemical barrels, non-rigid nylon tips, thin films, woven bags, etc. |
| CR-CG800# | 22*2 | 220 | L2.3*W1.2*H2.2 | 1500 | 3.5 | |
| CR-CG1000# | 30*2 | 260 | L2.5*W1.5*H2.4 | 2000 | 4.5 | |
| CR-CG1200# | 37*2 | 300 | L2.6*W1.8*H2.6 | 2500 | 5.5 | |
| CR-CG1500# | 45*2 | 400 | L2.9*W2.2*H2.9 | 3000 | 6.5 |
| Model | Power | Cutters Diameter | Dimensions | Throughput | Weight | Application |
| CR-CG600# | 30kw single motor | 220 MM | L1.8*W0.8*H1.9 m | 1000KG/H | 2.5T | Suitable for thick rigid ABS nylon tips, household appliance shells like washer shell and refrigerator shell, tires, rubber, plastic barrel, plastic container, plastic plate, etc. |
| CR-CG800# | 22kw*2 | 260 MM | L2.3*W1.2*H2.2 m | 1500KG/H | 3.5T | |
| CR-CG1000# | 30kw*2 | 300 MM | L2.5*W1.5*H2.4 m | 2000KG/H | 4.5T | |
| CR-CG1200# | 37kw*2 | 350MM | L2.6*W1.8*H2.6 m | 2500KG/H | 5.5T | |
| CR-CG1500# | 45kw*2 | 400 MM | L2.9*W2.2*H2.9 m | 3000KG/H | 6.5T |
About us
Founded in 2004, CRSTA Machinery can provide not only various recycling equipment, but also customized plastic recycling solutions for customers.
Originated from a waste plastic washing factory, we have accumulated from the 11-year development a wealth of experience and professional knowledge of plastic processing.
In 2015, CRSTA officially entered the field of manufacturing recycling equipment, especially plastic recycling equipment.
We have more than 50 employees, 8 of which are experienced research staffs who can design the most suitable plastic recycling solutions for customers based on customers’ requirements and their rich experience in equipment manufacturing.
